AI Driven AOI-based Wafer Defect Classification System

Problem Statement

Wafer Defects and Their Impact

In semiconductor manufacturing, each wafer undergoes numerous complex processing steps, from deposition and lithography to etching and ion implantation. At every stage, there is a potential for defects to arise. These defects can manifest in various forms:

• Pattern defects: Missing, extra, or malformed circuit patterns.
• Particle defects: Contaminants (dust, debris) on the wafer surface.
• Scratch defects: Physical damage to the wafer.
• Bridge defects: Unintended connections between conductive lines.
• Open defects: Breaks in conductive lines.
• Residue defects: Unwanted material remaining after processing.
• Structural defects: Crystalline imperfections or delaminations.

The consequences of undetected or misclassified wafer defects are severe:

• Significant Yield Loss: Defective dies translate directly to reduced functional chips per wafer, drastically increasing per-chip cost.
• Increased Rework and Scrap: Imperfect wafers may require costly rework or, more often, are scrapped entirely, wasting valuable materials and processing time.
• Delayed Time-to-Market: Rework and retesting cycles extend production timelines, impacting a company's ability to capitalize on market opportunities.
• Reliability Issues: Subtle defects that pass initial inspection can lead to premature device failure in the field, damaging brand reputation and incurring warranty costs.
• Inefficient Process Control: Without accurate and timely defect classification, identifying the root cause of defects (e.g., equipment malfunction, process deviation, material impurity) becomes challenging, hindering effective process improvement.

Traditional manual visual inspection is slow, subjective, prone to human error, and incapable of detecting microscopic defects across an entire wafer. Older automated systems often struggle with the diversity and complexity of defect types, leading to high false-positive rates and limited classification accuracy.

Introduction to AOI in Semiconductor Wafer Inspection

Automated Optical Inspection (AOI) is a non-contact, high-speed visual inspection technology used extensively in semiconductor manufacturing to identify surface and pattern defects on wafers. AOI systems capture high-resolution images under various lighting conditions and analyze these images to detect anomalies that could impact yield and device performance.

AOI serves as the first line of defence in quality control, inspecting wafers after critical process steps such as patterning, etching, and deposition. Unlike manual inspection, AOI operates at nanometer-scale precision, essential for modern semiconductor nodes with shrinking geometries and complex 3D structures.

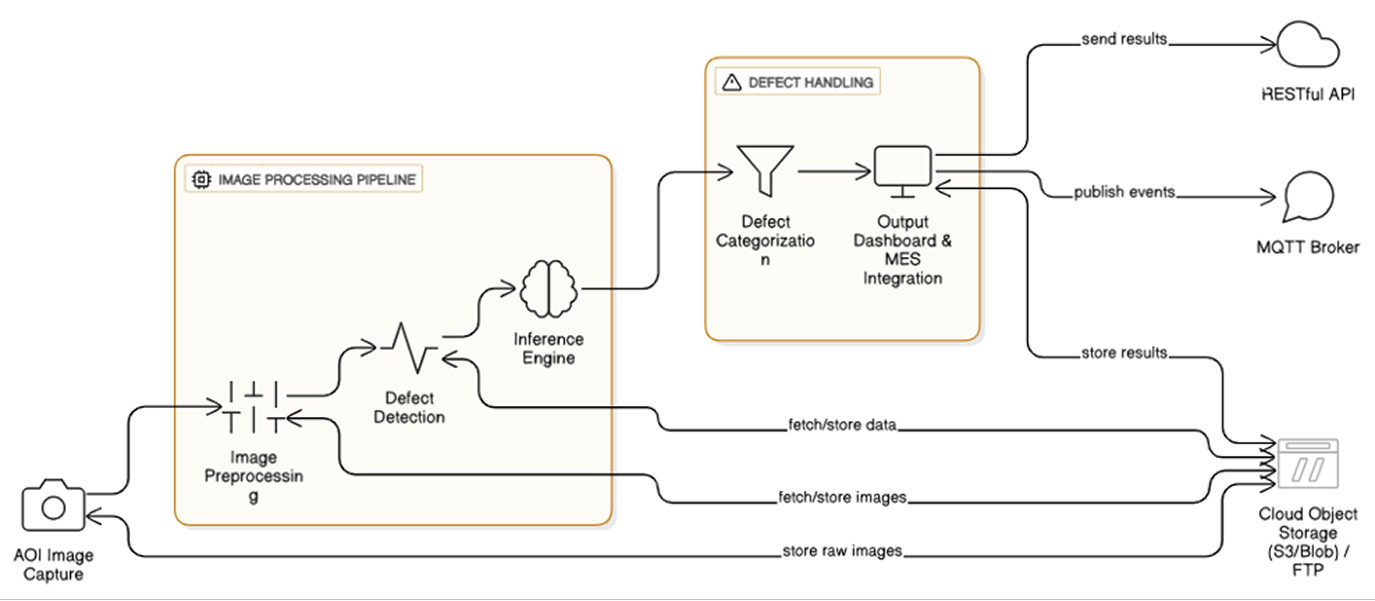

AOI System Architecture and Workflow

Image Acquisition

AOI systems employ high-resolution cameras (up to 25 megapixels) mounted on precision stages to scan the wafer surface. Multispectral lighting (visible, UV, IR, polarized) is used to highlight different defect types, including particles, scratches, and topographical variations. Techniques like dark-field imaging enhance edge defect detection.

Preprocessing and Alignment

Captured images undergo preprocessing to normalize brightness, reduce noise, and geometrically align with reference patterns or "golden units." This step ensures consistent comparison and accurate defect localization by correcting for wafer shifts, rotations, or warping.

Defect Detection

Defect detection combines rule-based algorithms and statistical models:

• Pattern matching to identify deviations from expected shapes
• Edge detection for line breaks or mask misalignments
• Anomaly detection using statistical deviations to find unknown defects
• Morphological analysis for size, shape, and texture extraction

Defect Classification

Defect detection combines rule-based algorithms and statistical models:

• Pattern matching to identify deviations from expected shapes
• Edge detection for line breaks or mask misalignments
• Anomaly detection using statistical deviations to find unknown defects
• Morphological analysis for size, shape, and texture extraction

AI and Deep Learning in AOI-Based Defect Classification

AI-Driven Defect Analysis

Modern AOI systems integrate AI to enhance detection and classification accuracy. AI models can differentiate between cosmetic and critical defects, reducing false positives and improving decision-making. Techniques include:

• Object detection for precise defect localization
• Segmentation to isolate defects from background
• Anomaly detection using unsupervised learning to identify novel defect types

Deep Neural Networks (DNN) for Wafer Defect Classification

Advanced deep learning models, such as ResNet, VGG, Inception, MobileNet or GoogLeNet architectures, have demonstrated state-of-the-art performance in classifying both single and mixed wafer defect patterns. These models achieve classification accuracies up to 99.9% by employing data augmentation techniques to address className imbalance and noise robustness.

Hybrid AI approaches combining Convolutional Neural Networks (CNN) and K-Nearest Neighbors (KNN) have shown breakthroughs in classification performance, reducing defect escape rates and improving inline AOI tool reliability.

Key Features of AI Driven AOI-Based Wafer Defect Classification Systems

• High-Resolution Imaging:Sub-micron resolution imaging enables detection of the smallest defects.
• Multispectral Lighting:Enhances visibility of diverse defect types, including subsurface anomalies.
• Automated Focus and Precision Stages:Ensure consistent image quality across wafers.
• Modular and Scalable Design:Facilitates customization and upgradeability.
• AI-Powered Classification:Reduces manual intervention, improves accuracy, and accelerates throughput.
• Traceability and Documentation:Generates detailed defect maps with timestamps and severity scores for process control and auditability.
• Automated Material Handling:Integration with robotic arms for seamless wafer transfer during inspection.

Benefits of AI Driven AOI-Based Wafer Defect Classification

• Yield Improvement: Early detection and accurate classification prevent defective wafers from progressing, reducing scrap rates.
• Increased Throughput: Automated analysis reduces Manual Inspection effort by 75% - 90% without compromising quality.
• Process Control Enablement: Defect data feeds into Statistical Process Control (SPC) and Yield Management Systems (YMS) to identify trends and root causes.
• Reduced False Positives: AI classification minimizes unnecessary rework and inspection cycles.
• Adaptability: Continuous learning AI models adapt to new defect patterns and process changes, maintaining inspection relevance in evolving manufacturing environments.
• Cost Efficiency: Reduces manpower needs for visual inspection while improving overall inspection accuracy.

Applications and Use Cases

• Front-End Wafer Inspection:Detecting pattern defects post-lithography and etching.
• Back-End Packaging Inspection:Ensuring integrity during wafer-level packaging and singulated package inspection.
• Post-Saw Inspection:Identifying sawing-induced surface defects.
• 3D Structure Inspection:Detecting topographical defects such as dishing and erosion using 3D AOI techniques.

Technology Stack

This section outlines the key technologies used in building the wafer defect classification system. It includes tools for image processing, machine learning, model deployment, integration, and visualization. The stack ensures performance, scalability, and seamless factory integration.

Deployment Strategy

The deployment approach ensures real-time performance and flexibility across different environments. It supports edge deployment for low-latency inference and cloud integration for scalable model management. Automation through CI/CD (MLOps) enables continuous improvements without hindering production.

• Edge Deployment: Real-time classification on in-fab GPU devices.
• Cloud/Hybrid: Model management and retraining pipeline hosted on cloud.
• CI/CD: Automated retraining, testing, and deployment workflows.
• API Integration: Connects with factory automation, MES, SPC, and FDC systems.

Challenges and Mitigation

Deploying a machine learning - based AOI system presents both technical and operational challenges. This section addresses common obstacles such as className imbalance, noise, and integration complexity. Proven mitigation strategies are listed to ensure system reliability and adaptability.

Conclusion

Mindteck offers this AI-driven AOI-based wafer defect classification system as a high-value solution in its semiconductor service portfolio. The system can be customized for client-specific inspection criteria, integrated into factory automation pipelines, and scaled across multiple fabs.

Glossary

• AOI: Automated Optical Inspection
• AI: Artificial Intelligence
• CNN: Convolutional Neural Network
• KNN: K-nearest Neighbors
• SPC: Statistical Process Control
• YMS: Yield Management System
• 3D AOI: Three-Dimensional Automated Optical Inspection
